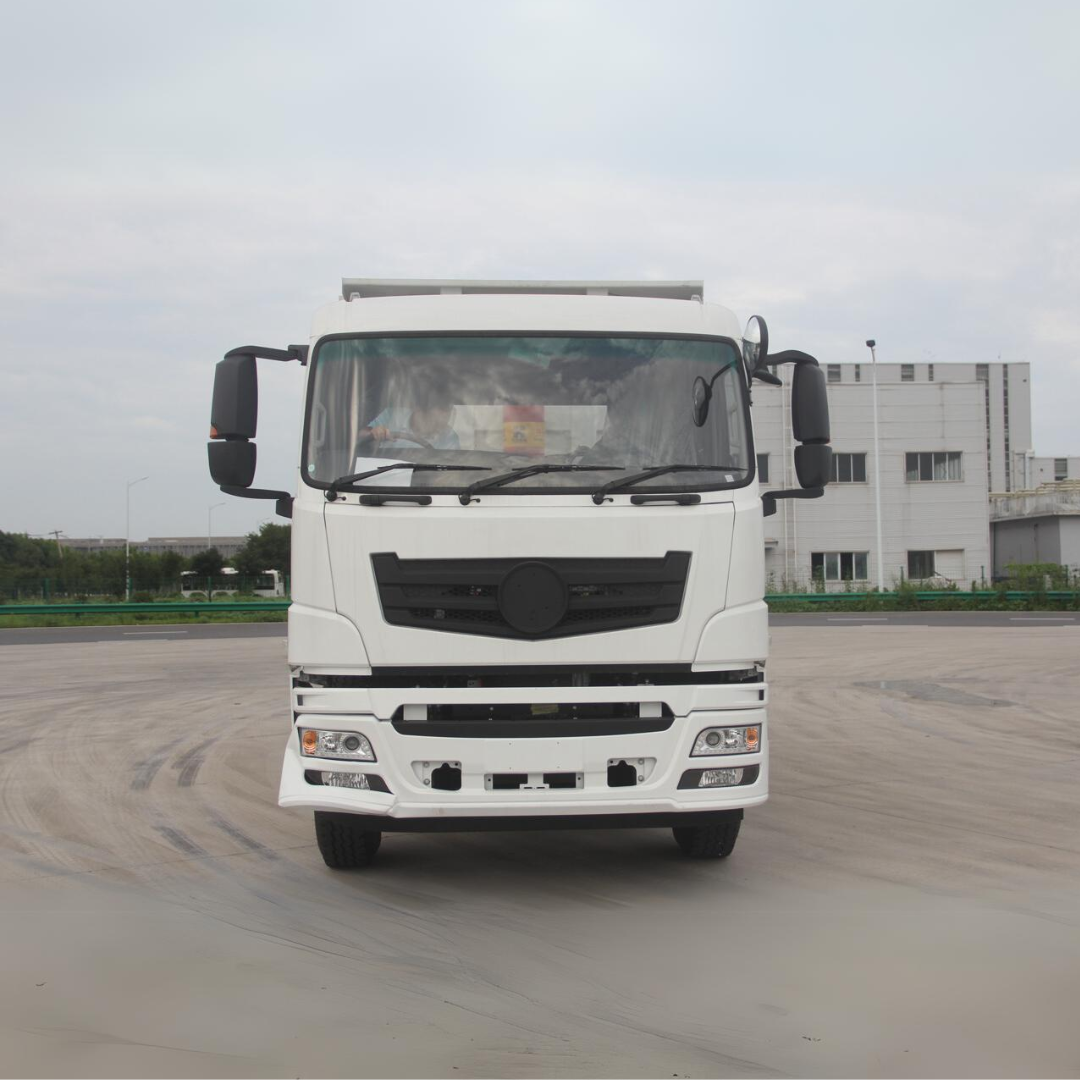

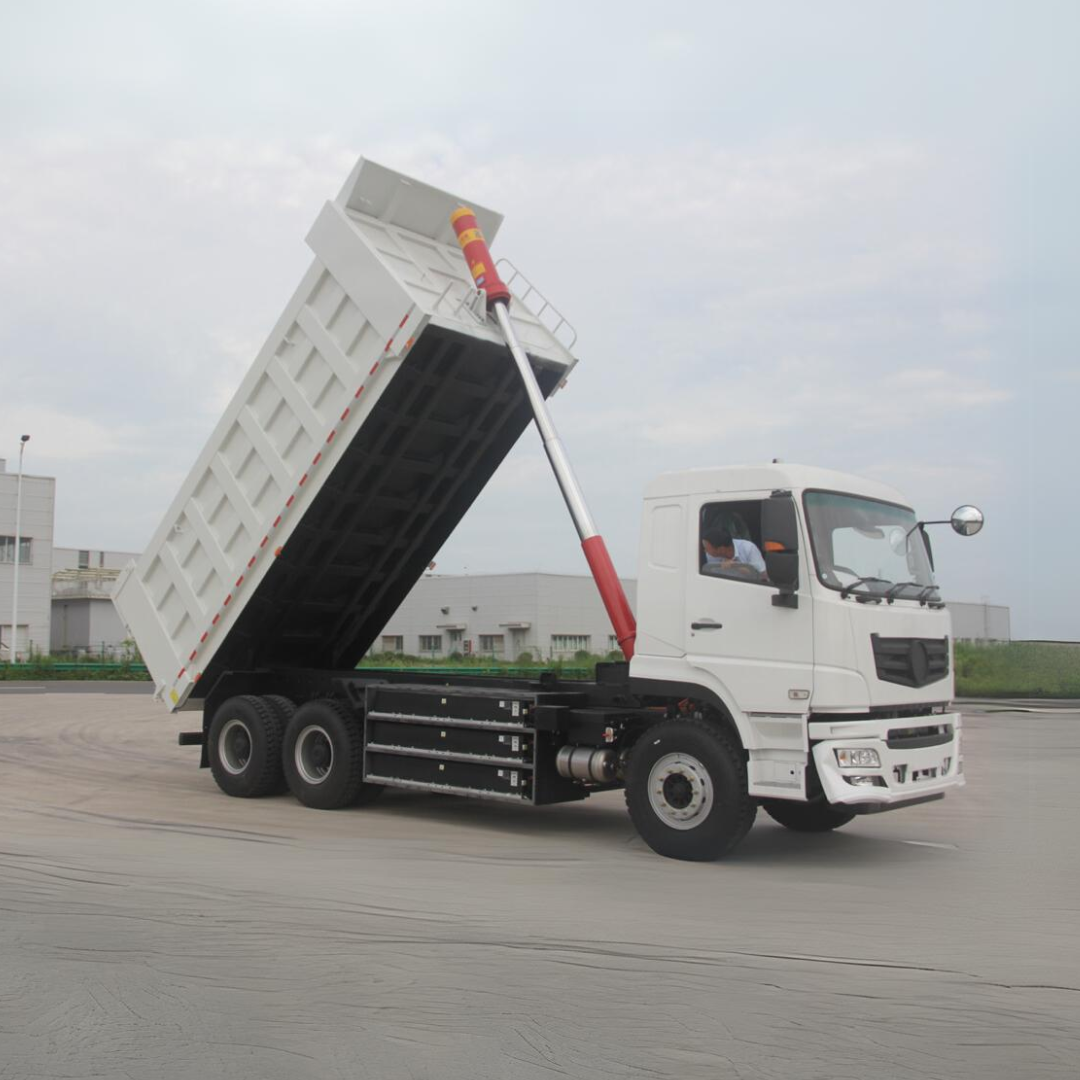

Electric Tipper
Enhance your fleet with electric tipper trucks for sustainable and cost-effective operations. Experience transport like never before.
Key Features
-
Payload Capacity of up to 40,000 kg
-
Cruise Milage of 120 km
-
Cargo Box is 5600 × 2300 × 1700 mm
Specification
➤ SWIPE TO SEE MORE
| Model | Short Wheelbase with Cargo Box | Short Wheelbase, Cab Chassis | Long Wheelbase, Cab Chassis |
| Chassis Size | 8030 x 2498 x 3170 mm | 8700 x 2498 x 3170 mm | 11900 x 2498 x 3170 mm |
| Cargo Box | 5600×2300×1700 = 21.9 m3 (Internal) | N/A | N/A |
| Angle of approach/Departure | 29°/59.6° (Chassis) | 29°/34° | 29°/18° |
| Curb weight | 19000 (with Cargo Box) kg | 14700 (Chassis) kg | 14800 kg |
| Registered GVW | 26000 kg | 26000 kg | 26000 kg |
| Maximum total mass (GVW) | 59000 kg | 59000 kg | 59000 kg |
| Payload | 40000 kg | 40000 kg | 40000 kg |
| Maximum passengers | 3 | 3 | 3 |
| Maximum speed | 80 km/h | 80 km/h | 80 km/h |
| Maximum gradability | 20% (@ 60T GVW) | 20% (@ 60T GVW) | 20% (@ 60T GVW) |
| Minimum ground clearance | 290 mm | 290 mm | 290 mm |
| Minimum turning diameter | 19.2 m | 19.2 m | 25.37 m |
| Cruise mileage @ 60T GVW | 120 km (60 km loaded + 60 km unloaded) |
120 km (60 km loaded + 60 km unloaded) |
210 km (105 km loaded + 105 km unloaded) |
