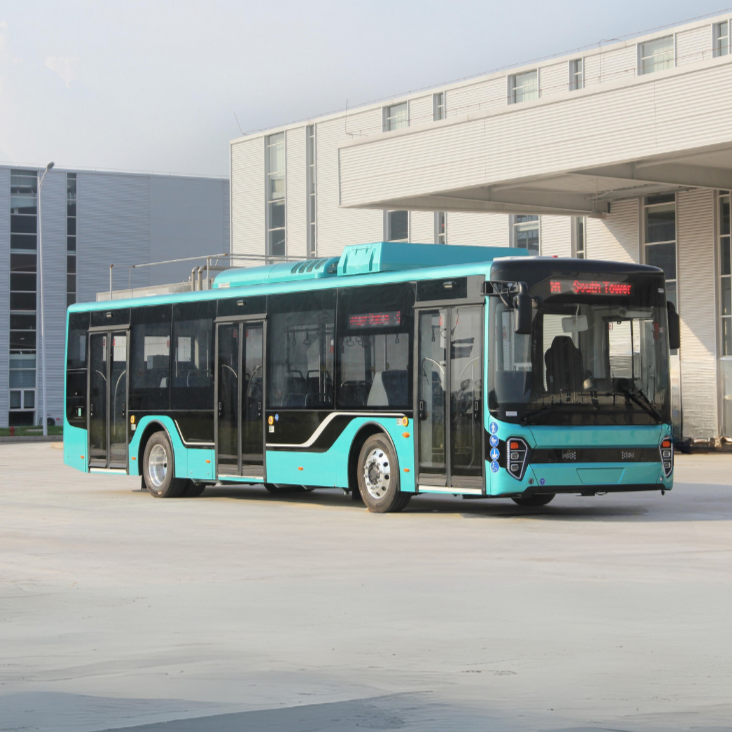

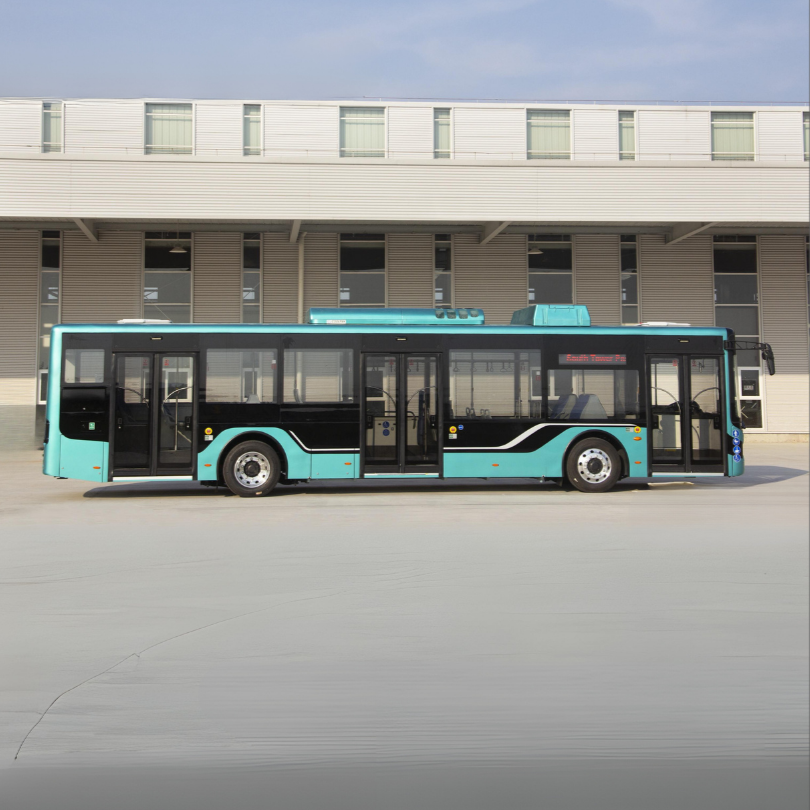

Bus 12m
The 12m electric bus combines zero emissions with spacious seating and advanced battery technology, perfect for urban and intercity travel.
Key Features
-
Seating Capacity (2 Door) - 37
-
Bus Size - 12.1m(L) x 2.5m(W) x 3.2(H)
-
Range on Full Charge > 300km
Specification
| Feature | Value |
| Vehicle Dimensions | 12135 (L) x 2550 (W) x 3260 (H) mm |
| Wheelbase | 5900 mm |
| Motor | DANA,PMSM |
| Torque Output | 1700/ 3500 Nm |
| Battery Pack | Lithium Iron Phosphate, 422 kWh |
| Power Output | 195/ 350 kW |
| Front/Rear Overhang | 2805/3340 mm |
| Front/Rear Tread | 2158/1860 mm |
| Angle of Approach/Departure | 7/7 ° |
| Curb Weight | 13200 kg |
| Maximum Total Mass | 18000 kg |
| Axle Load | 6,500/ 11,500 kg |
| Maximum Passengers | 33/37 Seats - 3/ 2 Doors + 1 Driver |
| Maximum Speed | ≥ 80 km/h |
| Cruise Mileage (Fully Loaded w/ A/C) | ≥ 300 km |
| Maximum Gradability | ≥ 18% |
| Minimum Ground Clearance | 150 mm |
| Minimum Turning Radius | 23 m |
