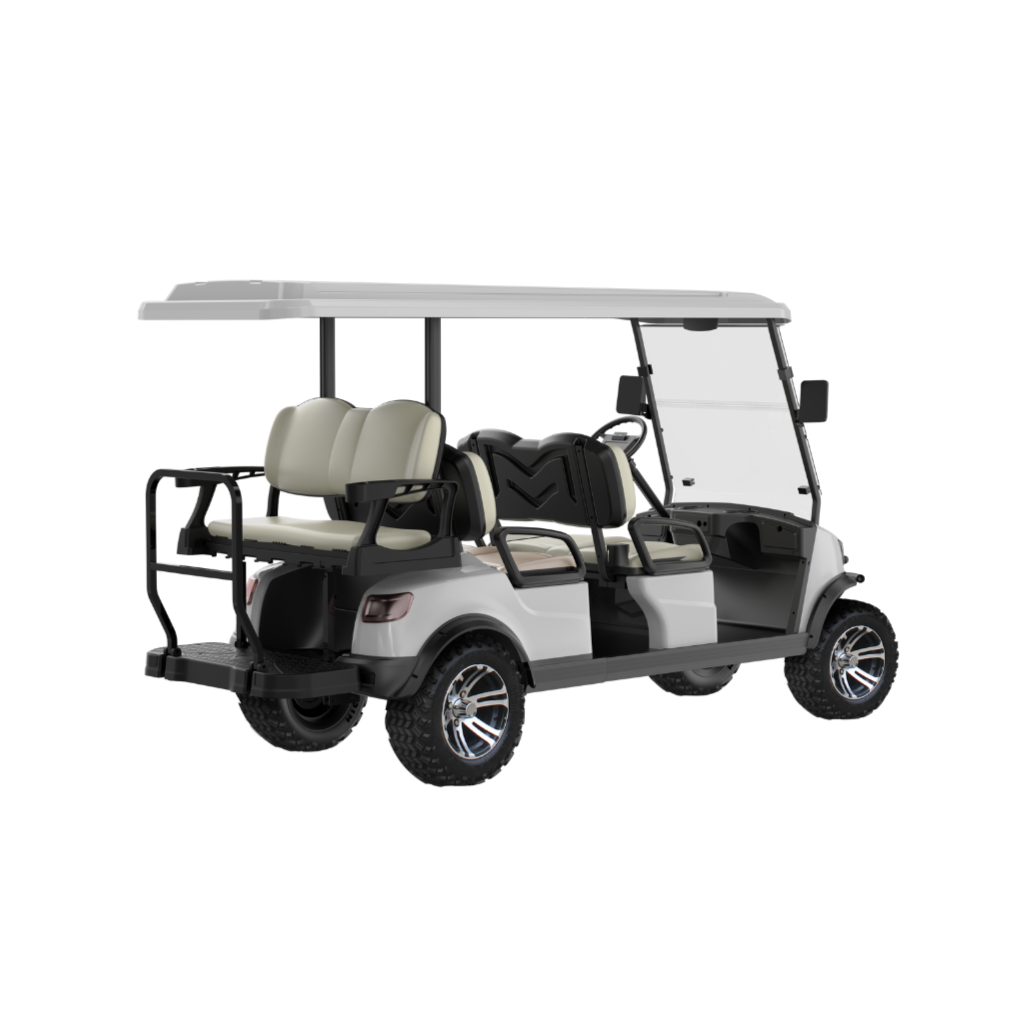

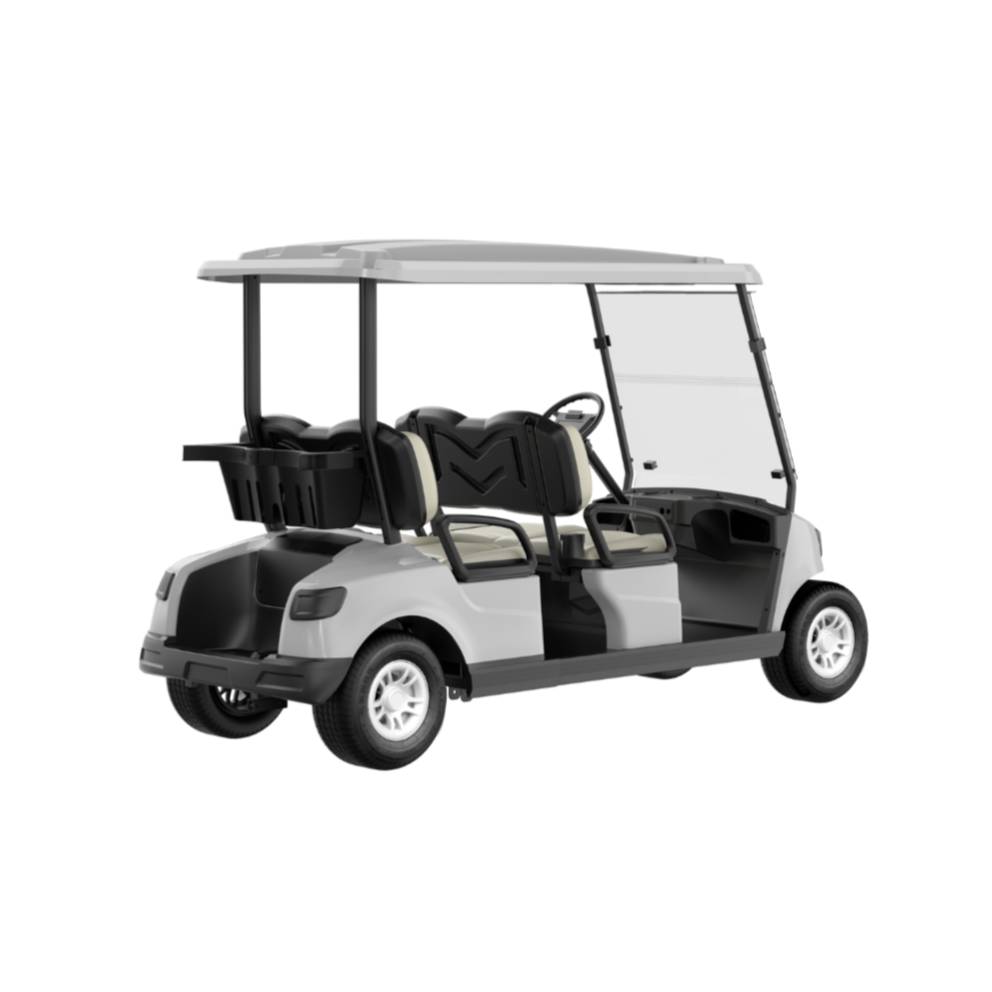

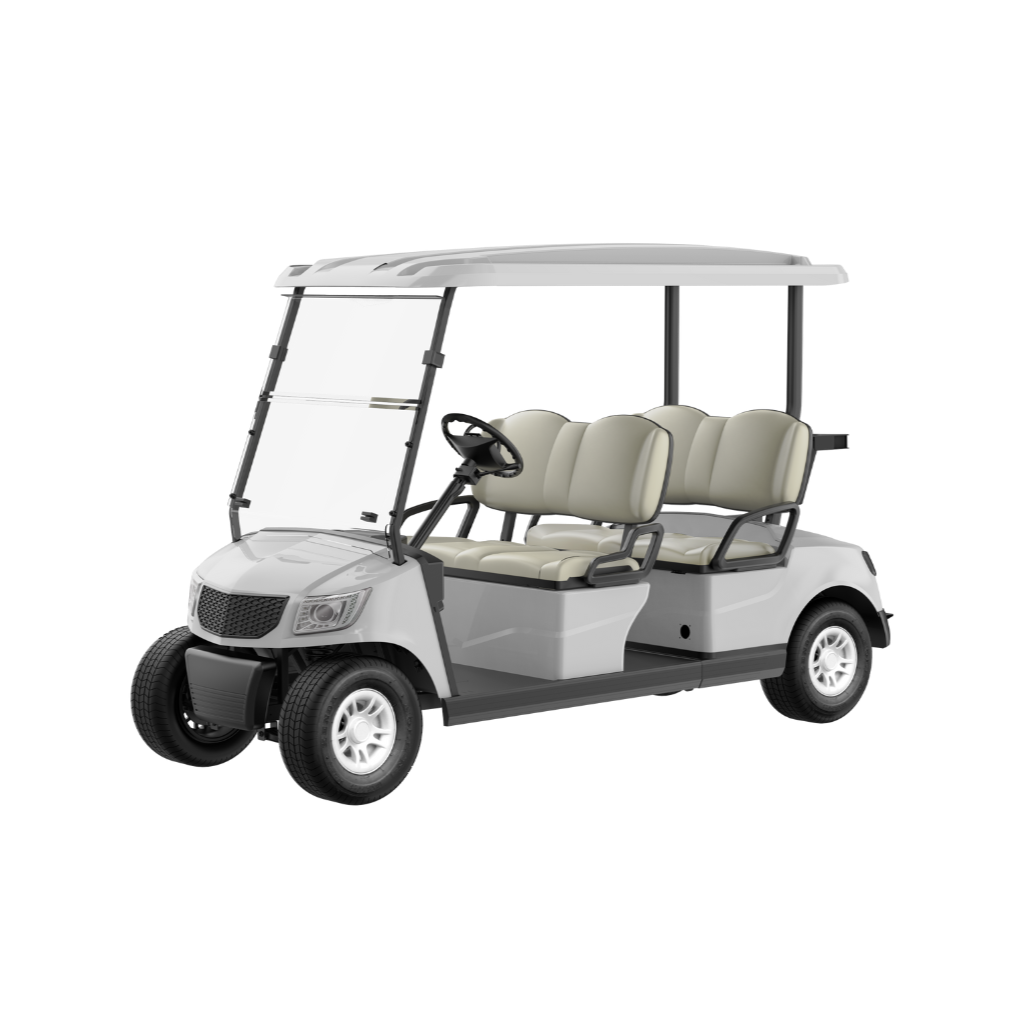

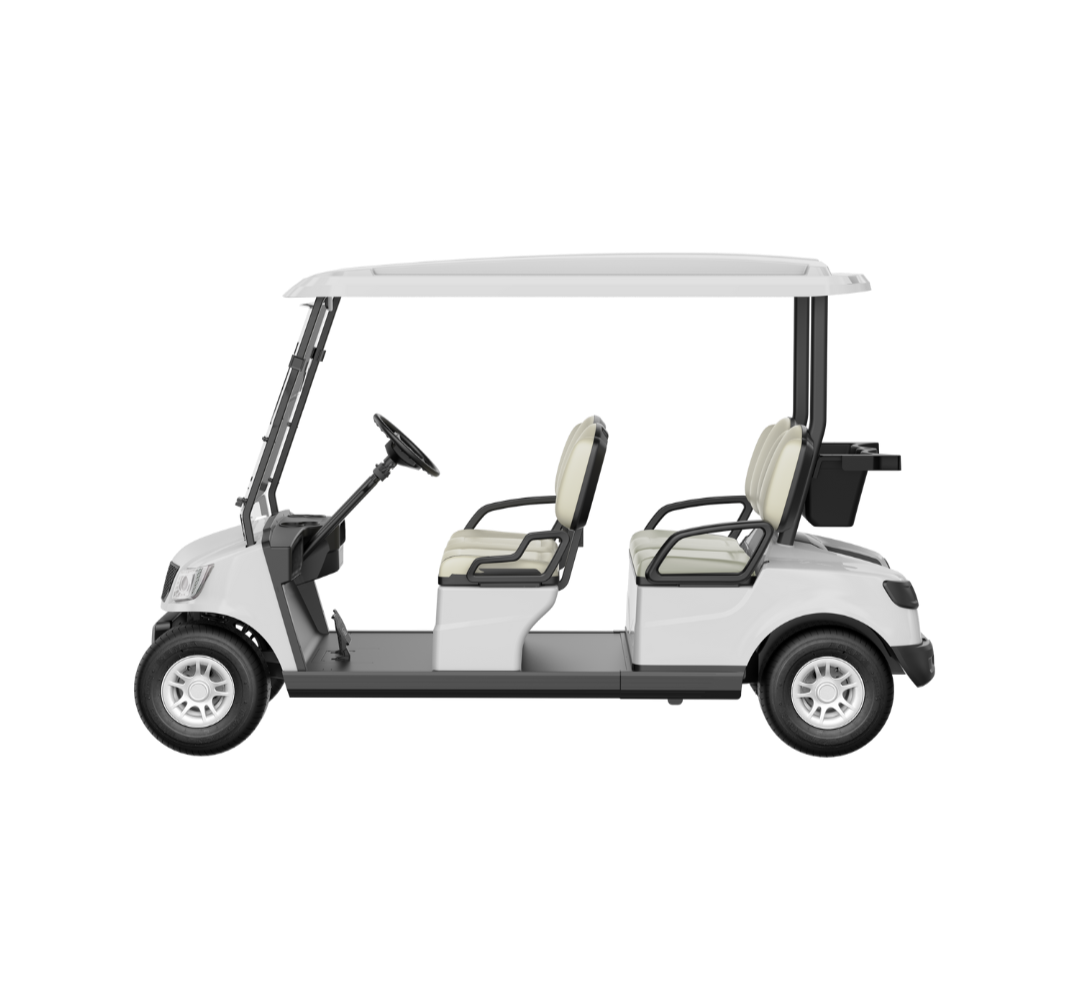

Cart M4

Enhance your fleet with electric golf carts for efficient and eco-friendly transportation. Experience smooth, silent rides with minimal maintenance and maximum performance.

1 4

Key Features

  • Max Range 80 km

  •

    Max Speed 20 km/h

  •

    Charge Time 5-8 hours
Make an enquiry

Specification

➤ SWIPE TO SEE MORE

    1 0
    Model DG-M4 DG-M4+2 DG-M4S
    Motor AC 48V 4KW AC 48V 5KW AC 48V 5KW
    Controller 48V 400A 48V 450A 48V 450A
    Battery 51.2V 105Ah / 48V 150Ah Lithium 51.2V 105Ah / 48V 150Ah Lithium 51.2V 105Ah / 48V 150Ah Lithium
    Range 60 km / 80 km 50 km / 70 km 50 km / 70 km
    Charging Time 5h / 8h 5h / 8h 5h / 8h
    Net Weight 470 kg / 480 kg 500 kg / 510 kg 500 kg / 510 kg
    Charger On Board Charger 48V 20A On Board Charger 48V 20A On Board Charger 48V 20A
    Wheel Base 2420 mm 2420 mm 2420 mm
    Front Tread/Rear Tread 920 mm / 960 mm 920 mm / 960 mm 920 mm / 960 mm
    Speed (km/h) 20 km/h 20 km/h 20 km/h
    Brake System Rear Mechanical Drum Brake Hydraulic Brake (Front, Rear) Hydraulic Brake (Front, Rear)
    Brake Distance 6 m 6 m 6 m
    Turning Radius 4.5 m 4.5 m 4.5 m
    Climbing Capacity 20% 15% 15%
    Ground Clearance 120 mm 120 mm 120 mm
    Tire 18*8.5-8 Steel Rim with Plastic Cover 12-inch Aluminium, Low Profile 215/35-12 12-inch Aluminium, Low Profile 215/35-12
    Dimension 3140*1180*1870 mm 3685*1226*1941 mm 3300*1174*1956 mm
    Rear Flip Flop Seats N/a Foldable with flat bed, Capacity: 150 kg N/A
    Cargo Box Size and Capacity N/a N/a 600*1120*310 mm, Payload: 100 kg
